CM-T1800 Industrial Refrigerant Recovery Machine

CM-T1800 industrial serier refrigerant recovery machine was originally designed for centrifugal chillers service with fast recovery rate and convenient operation.It utilizes oil free compressor and motor including oversized air cooled condenser to be compatiable with most CFC, HCFC, HFC,this powerful unit helps make the set up and transfer of refrigerant an efficient, safe, and quick procedure by incorporating features

that are important to technicians

Application

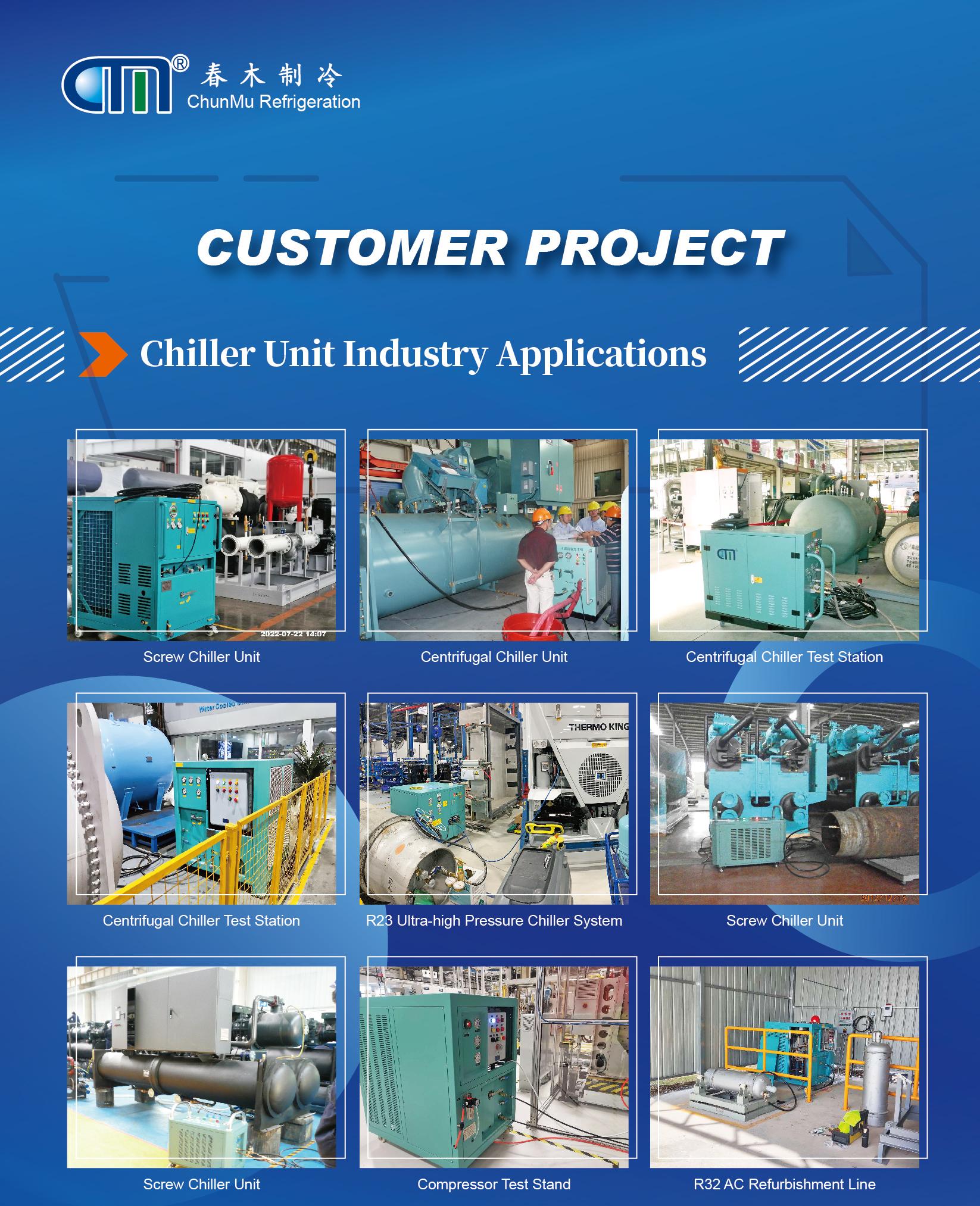

Chiller Field service

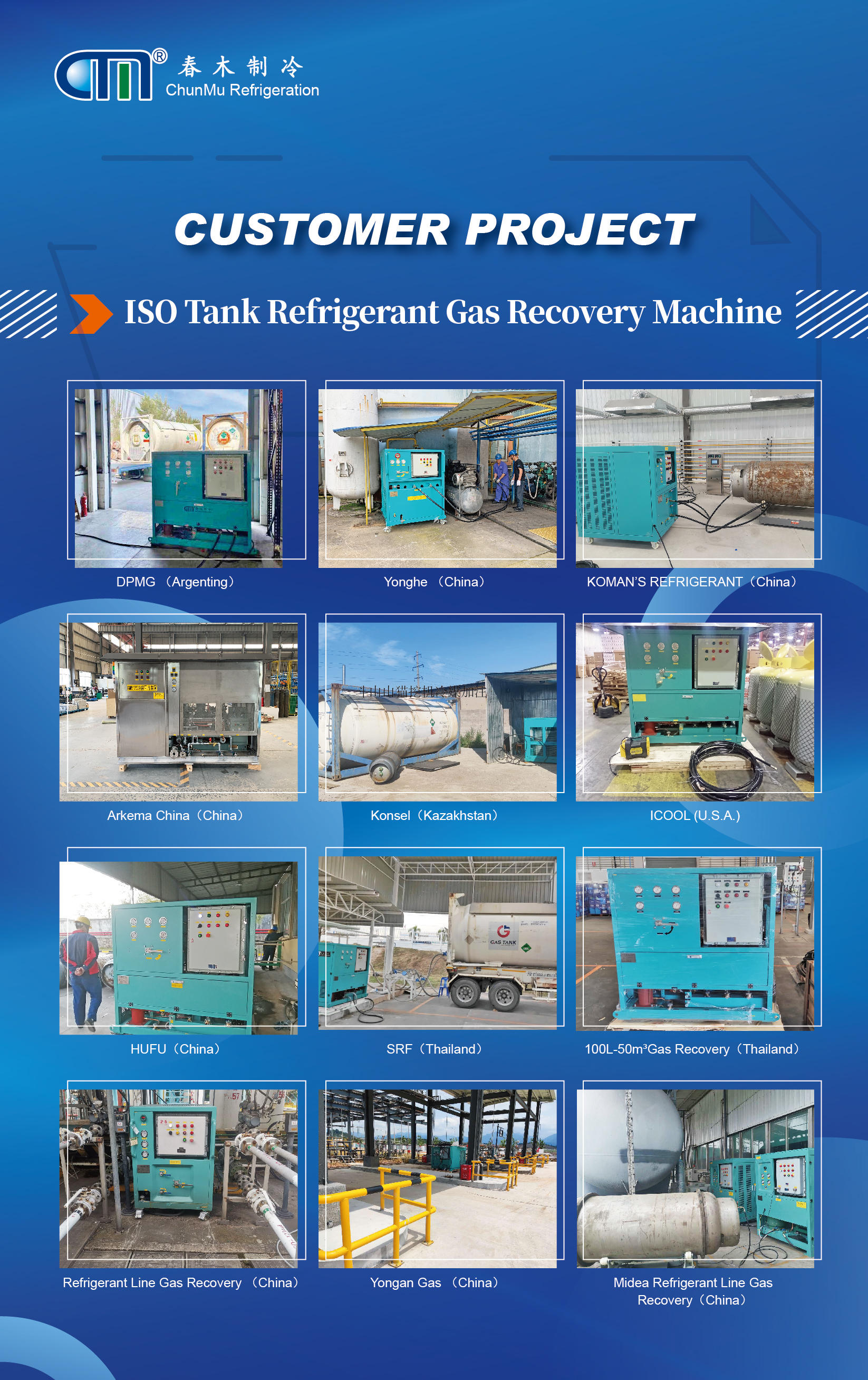

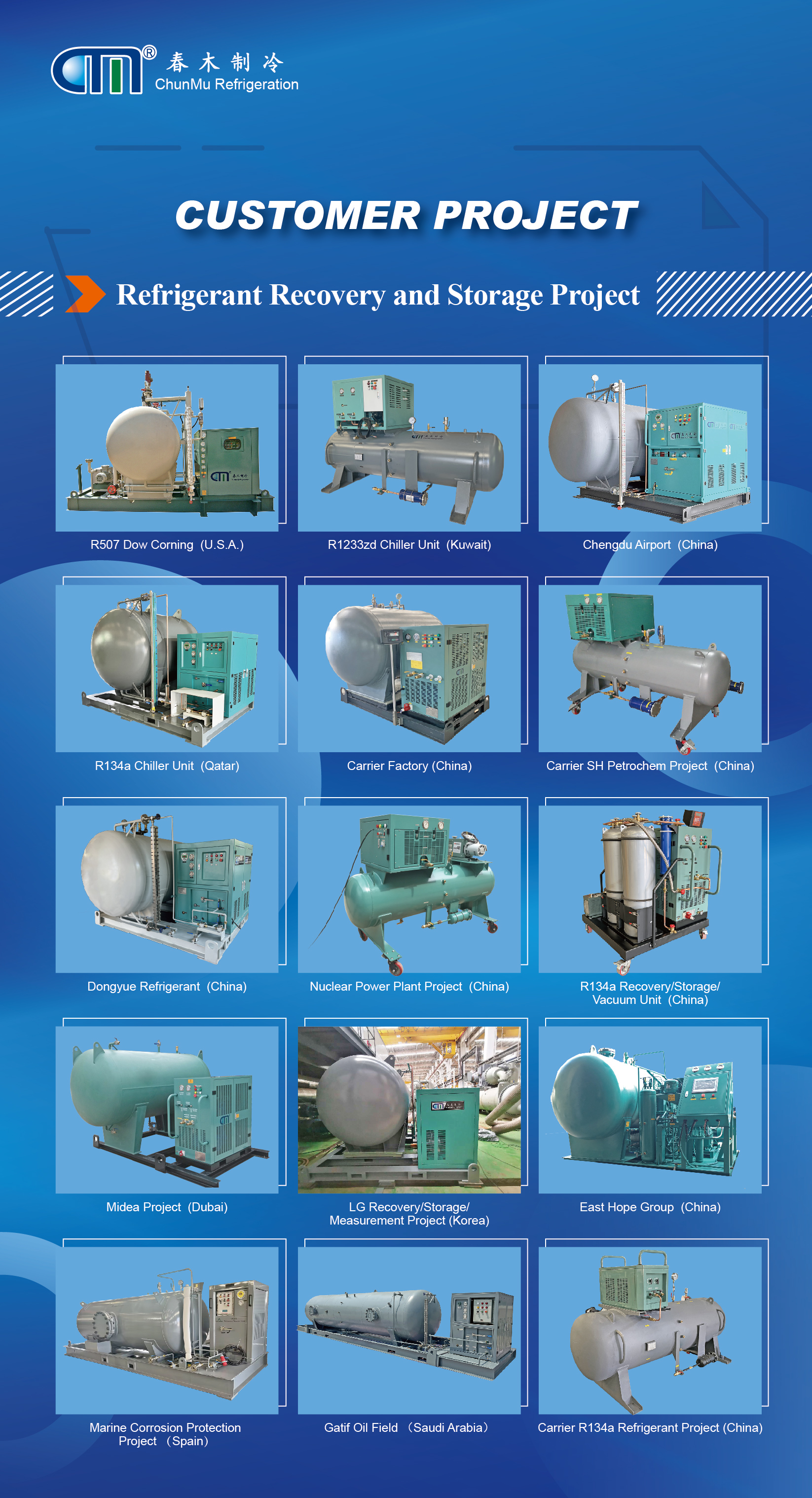

Storage Tank Residual Gas Recovery

Feature

·Stainless steel oil-less compressor to avoid refrigerant contamination

·Ultra fast recovery rate for both liquid and vapor refrigerants

·One valve to exchange vapor recovery and liquid push&pull recovery

·HP and LP shut-off function

·Standard air cooled system

·Deep vacuum degree allow recovery more refrigerant for avoid refrigerant loss

·Continuously running for 24 hours duty cycle

·Long service life

·Integrated oil separation

Specification

Model	CM-T1800-20IIA7.5		CM-T1800-30IA7.5
Horsepower	10HP		10HP 1010HP
Compressor Displacement	20m³/h		30m³/h30Ijwqd30
Compressor Type	SS304 oil-free reciprocating	R134a	SS304 oil-free reciprocating R134a
Vapor Recovery	≤150Kg/h	Automatic	≤200Kg/h200Automatic
Liquid Push&Pull Recovery Rate	≤7000Kg/h	Automatic - Not required	≤9000Kg/hAutomatic - Not required
Cooling	Air Cooled	98.50%	Air CooledAir 98.50%
Applicable Refrigerant	R410A/R134a/R407C/R404A etc.	Yes	R134/R22 etc.Yes
HP Shut-off	Yes	Yes	YesYes
LP Shut-off	Yes	Yes, 1 bottle	YesNo
Oil Separator	Yes	No	YesNo
Power Source	380V 50Hz 3Phase	Automatic	380V 50Hz 3PhaseAutomatic

Please contact us by email ---->

Main Features and Advantages:

Oil free compressor made by SS304

Large displacement compressor

One valve to exchange vapor and liquid recovery

Capable of handling various refrigerants

Fast fast recovery rate

HP and LP shut-off

Oil separation
